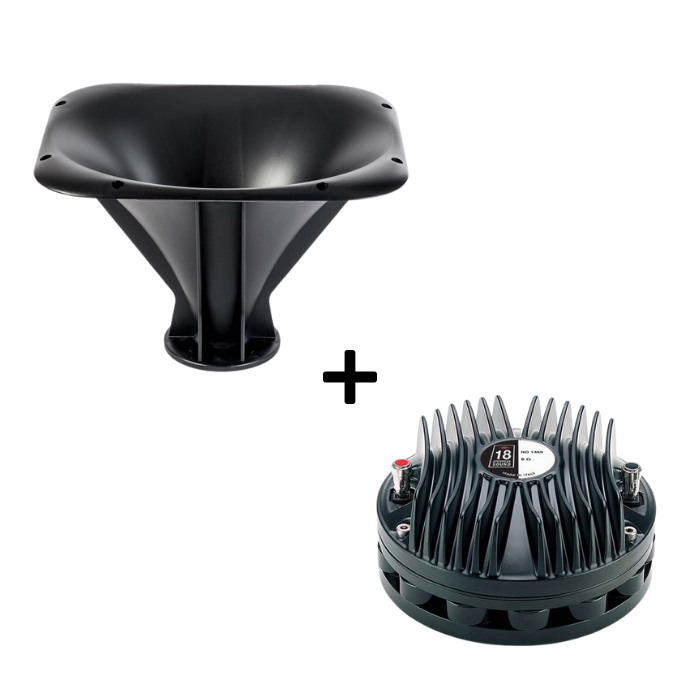

XT1464 Horn + Driver Combo (ND1460)

The XT1464 horn combined with the ND1460 compression driver forms a high‑performance constant‑directivity HF solution designed for professional sound reinforcement. The XT1464 features Eighteen Sound’s Elliptical Shape (ESS) technology, providing smooth, uniform coverage and low distortion at high sound pressure levels. When paired with the ND1460 neodymium compression driver, the combo delivers excellent efficiency, controlled directivity, and extended high‑frequency response, ideal for high‑output PA and touring applications.

Features
1.4 in throat entry
Elliptical Shape (ESS) constant‑directivity horn
Injection‑molded polyurethane horn construction
Uniform on‑axis and off‑axis frequency response
60° horizontal × 50° vertical constant coverage
Very low distortion at high SPL
High‑power neodymium compression driver with edge‑wound aluminum voice coil

Horn Specifications (XT1464)

Throat diameter: 35 mm (1.4 in)
Nominal coverage (horizontal): 60°
Nominal coverage (vertical): 50°
Cutoff frequency: 0.5 kHz
Dimensions: 380 × 304 × 257 mm
14.96 × 11.97 × 10.12 in
Construction: Injection‑molded polyurethane
Radiation pattern: Constant directivity, ESS elliptical shape

Compression Driver Specifications (ND1460)

Throat diameter: 35 mm (1.4 in)
Nominal impedance: 8 Ω
Minimum impedance: 8.0 Ω
Nominal power handling: 100 W
Continuous power handling: 200 W
Sensitivity: 109.0 dB
Frequency range: 0.5 – 20.0 kHz
Recommended crossover frequency: 0.8 kHz
Voice coil diameter: 75 mm (3.0 in)
Magnetic flux density: 1.9 T
Motor type: Neodymium

Typical Applications
High‑output PA systems
Touring and live sound reinforcement
Two‑way and multi‑way loudspeaker systems
Professional mid‑high frequency sections
