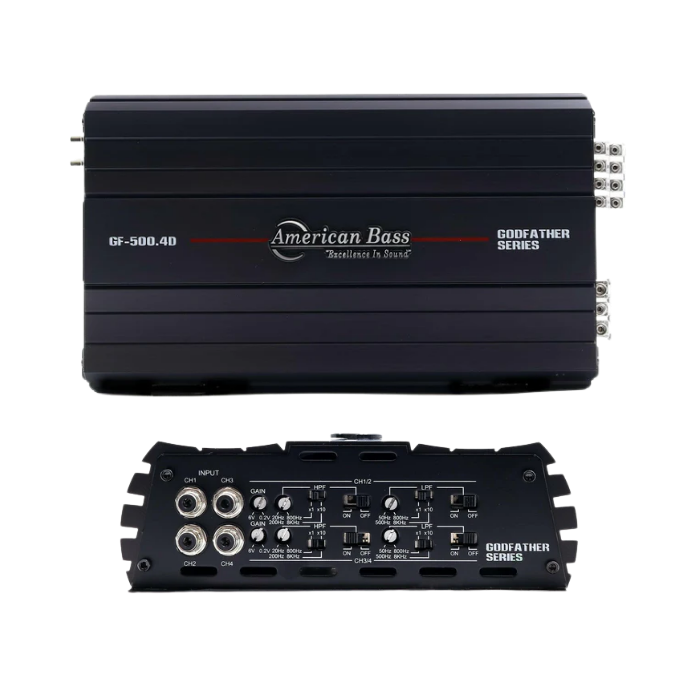

Godfather 500.4D

Meet the American Bass Godfather Amplifier, the compact dynamo that’ll make your car audio system an offer it can’t refuse. This full-range digital circuit amplifier boasts 2-ohm stereo stability and a slew of customizable options, including variable high and low pass filters, multiply x1, x10, and band-pass capabilities, ensuring a powerful sound worthy of the Corleone family. With a double-sided printed circuit board and surface mount technology, the Godfather delivers a sleek, dependable performance, making your car audio system the Don of the streets. The wired remote control and clipping indicator keep you in command, while the multi-way protection circuitry safeguards your audio empire from DC, speaker short, thermal, and voltage threats. Make your car audio experience an offer it can’t refuse with this small yet mighty wiseguy, because in the world of sound, it’s not personal; it’s strictly business.

Category: Brand:

Description

GENERAL SPECIFICATIONS
Box Dimensions (L x W x H in) 11.82L x 7.5W x 2.33H
THD < 0.1%
Width (in) 7.5
Height (in) 2.33
Length (in) 11.82
Amplifier Type Multichannel
Class D
Damping Factor 150 <
Fuse Rating (Amps) 130A
Signal to Noise Ratio (dB) 85 dB
Frequency Response 10 Hz – 250 Hz
T/S PARAMETERS
RMS Power 1 Ohm N/A
RMS Power 2 Ohm 360 x 4CH
RMS Power 4 Ohm 240 x 4
PROTECTION TYPES
DC / Speaker Short / Thermal / Voltage
TECHNICAL SPECIFICATIONS
SNR (dB) 85 dB
Input Sensitivity 6V – 0.2V
Channels 4
Low Pass Filter 50Hz – 8000Hz
High Pass Filter 20Hz – 800Hz
MOSFET Type Dual MOS-FET PWM power supply
Turn On Circuit Multi-way protection circuitry
Fuse Rating 130
Power Wire Gauge 4 AWG
DIMENSIONS
Length 11.82
