H500

H500

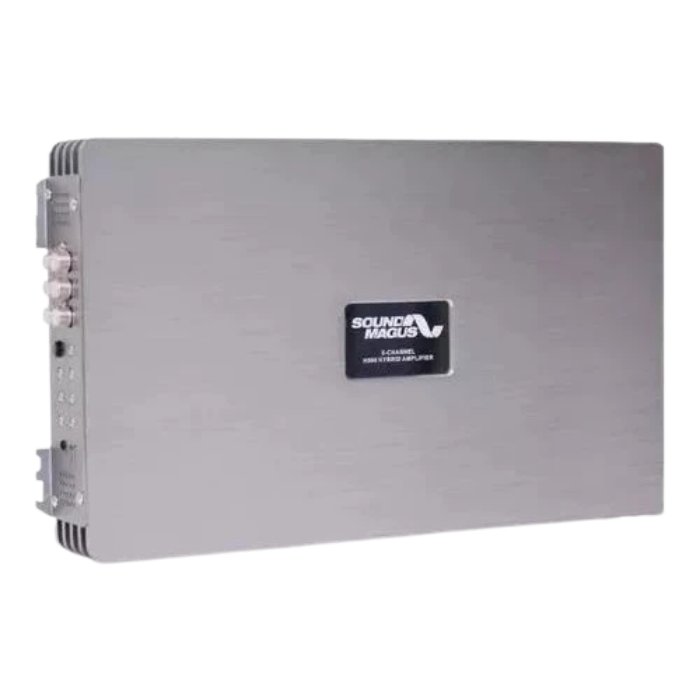

The Sound Magus H500 is a 5‑channel hybrid amplifier (Class AB for midrange and high frequencies + Class D for subwoofers) designed for complete high‑performance car audio systems. It delivers approximately 80–90 W RMS × 4 + 250–500 W RMS × 1 at 2Ω, making it ideal for driving four speakers and a subwoofer. It stands out for its compact design, aluminum chassis, and illuminated logo.

Description

Key Features of the Sound Magus H500:

5‑Channel Hybrid Design: Combines four Class AB channels (high fidelity) with one Class D channel (high efficiency).
RMS Power Output (14.4V):
- 4 Ω: 80 W × 4 + 250 W × 1
- 2 Ω: 110 W × 4 + 380 W × 1
- Note: Some sources report up to 500 W on the fifth channel at 2 Ω.
Frequency Response: 10 Hz – 35,000 Hz
Adjustments: Includes adjustable high‑pass (HPF) and low‑pass (LPF) crossovers, plus bass boost (0–12 dB).
Inputs: Compatible with both high‑level and low‑level (RCA) signals

Technical & Installation Details:

Connections: Accepts 4‑gauge power and ground wiring
Lighting: Blue illuminated Sound Magus logo when powered on
H Series: Considered a high‑fidelity amplifier line, featuring increased power headroom for greater stability
