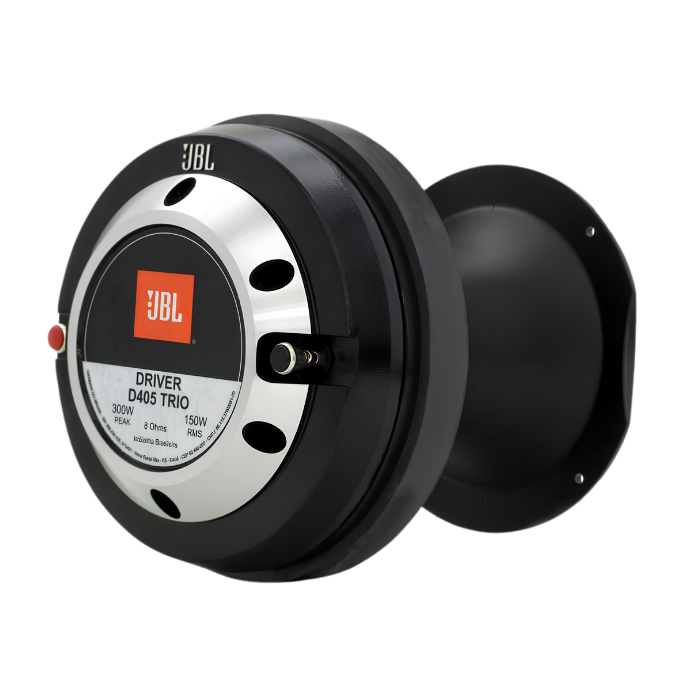

D405 Trio

D405 Trio

With its compact size, the JBL Selenium D405 Trio – 150 Watts RMS driver offers high sensitivity and low distortion, covering a wide mid-frequency response.
Perfect for use in PA systems, monitors, and stage and side-fill speakers, it boasts excellent performance achieved through the superb combination of its components.
The aluminum die-cast cover contributes to better heat dissipation from the voice coil, and features a diamond-machined (diamond tool) and varnished finish. The phenolic diaphragm is dome-shaped, and the “Phase Plug” acoustic transformer is die-cast aluminum with multiple optimized openings, minimizing phase

Category: Drivers Brand: JBL

Description

Nominal impedance: 8 Ohms
Minimum impedance @ 2,800 Hz: 7.3 Ω
POWER WITH CROSSOVER: (12dB/oct) PASSIVE
AES (HPF 500 Hz): 53 watts
AES (HPF 1 kHz): 65 watts
RMS (NBR 10.303) (HPF 500 Hz): 100 watts
RMS (NBR 10.303) (HPF 1 kHz): 150 watts
MUSICAL PROGRAM (HPF 500 Hz): 200 watts
MUSICAL PROGRAM (HPF 1 kHz): 300 watts
Sensitivity
In horn, 2.83V@1m, on axis: 10 dB SPL
In tube, 0.0894V: 116 dB SPL
Frequency response Frequency response @ -10 dB: 300 to 7,000 kHz
Throat diameter: 50 mm
Diaphragm material: Phenolic
Coil diameter: 100 mm
Re (coil resistance): 6.0 watts
Flux density in the gap: 1.60 T
Recommended minimum crossover frequency (12 dB/oct): 500 Hz
