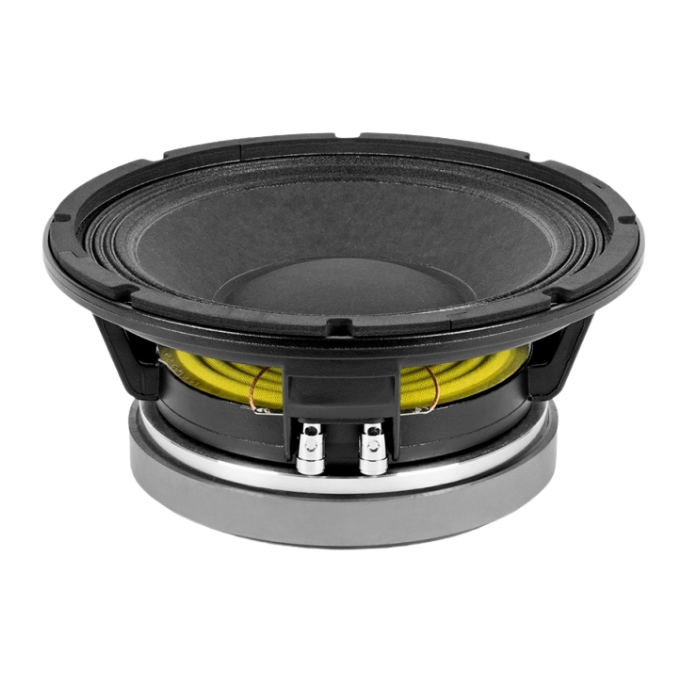

10MI100

10MI100

This midrange and low‑mid frequency transducer offers three key highlights: high efficiency (5.2%), an extremely linear response, and low harmonic distortion. These characteristics make it ideal for high‑quality sound reinforcement systems, especially in live sound applications. This model benefits from the latest improvements developed for higher‑power designs: the use of a stacked winding that optimizes the number of turns, an oversized magnetic circuit, and a die‑cast aluminum chassis that also improves heat dissipation from the voice coil and reduces power compression losses.

Category: Brand:

Description

Key Features

  • Very high efficiency: 5.2%
  • Extremely linear frequency response
  • Low harmonic distortion
  • 3‑inch (77 mm) flat aluminum wire voice coil, edge‑wound
  • Large magnetic assembly with excellent thermal dissipation
  • Designed for high‑quality mid‑frequency applications

Technical Specifications

  • Nominal Diameter: 250 mm / 10 in
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 8 ohms
  • AES Power Handling: 350 W
  • Program Power: 700 W
  • Sensitivity: 101 dB (2.83 V @ 1 m, 2π)
  • Frequency Range: 70 – 4,000 Hz
  • Recommended Enclosure Volume:
    • 20 – 50 liters
    • 0.7 – 1.75 ft³
  • Voice Coil Diameter: 77 mm / 3 in
  • Magnet Assembly Weight: 6.5 kg / 14.2 lb
  • BL Factor: 21.6 N/A
  • Moving Mass (Mms): 0.034 kg
  • Winding Height: 13.5 mm
  • Air Gap Height: 9.5 mm
  • Maximum Displacement: 24 mm
