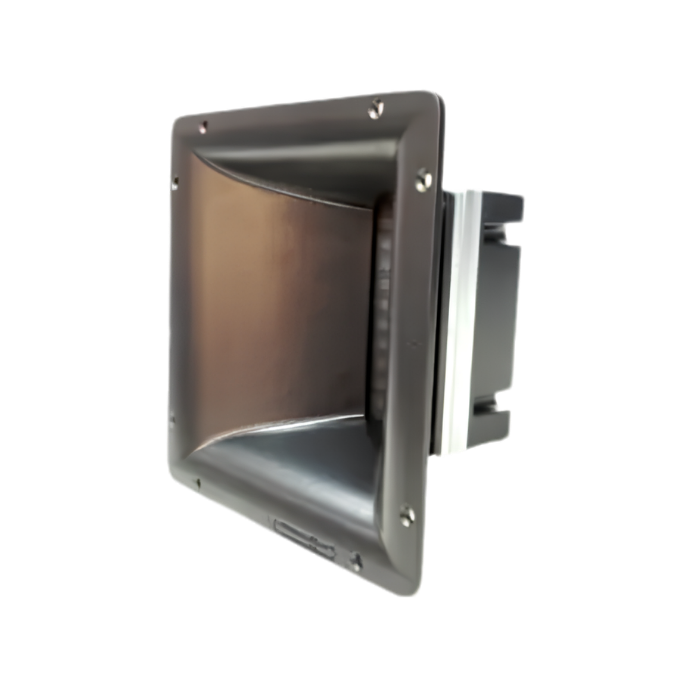

TPL-150H

Description

Nominal impedance: 8 Ohm
Electrical resistance: 4.9 ohms
Power handling capacity: 80 W AES above 1 kHz
Program power: 160 W above 1 kHz
Sensitivity: 102 dB (1 W @ 1 m)
Frequency range: 700 – 23,000 Hz
Recommended crossover frequency: 1 kHz or higher (minimum slope 12 dB/oct)
Horizontal coverage angle: 80° (+9°, −20°) // (−6 dB, 1.2 – 16 kHz)
Vertical coverage angle: 30° (+27°, −21°) // (−6 dB, 1.2 – 16 kHz)
Directivity factor (Q): 27 (average, 1.2 – 16 kHz)
Directivity Index (DI): 13 dB (+6 dB, −4.5 dB)
Diaphragm material: Kapton
