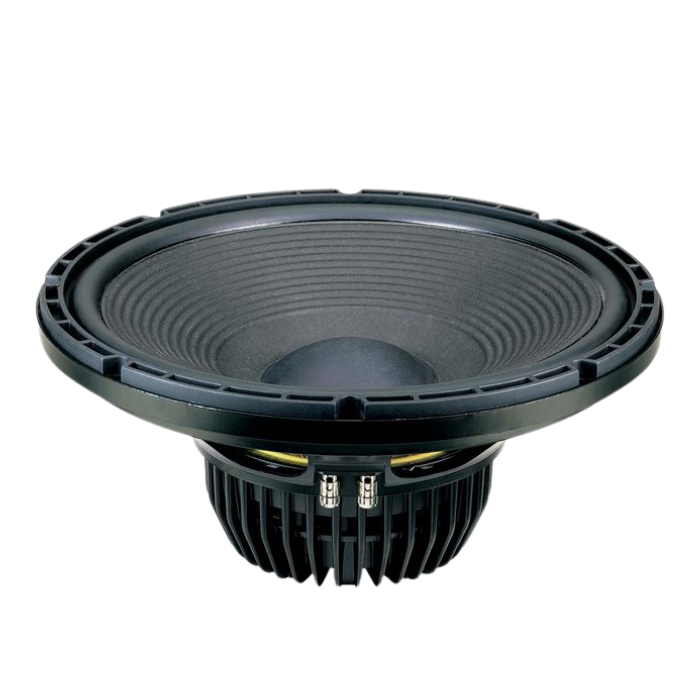

Description
Specifications
Nominal diameter: 380 mm (15 in)
Nominal impedance: 8 Ω
Nominal power handling: 1000 W
Continuous power handling: 1400 W
Sensitivity: 96.0 dB
Frequency range: 42 – 2000 Hz
Voice coil diameter: 100 mm (4.0 in)
Design (Enclosure Recommendations)
Recommended enclosure volume:
120.0 dm³
4.24 ft³
Recommended tuning frequency: 37 Hz
Parameters (Thiele & Small)
Resonance frequency (Fs): 35 Hz
DC resistance (Re): 4.9 Ω
Qes: 0.34
Qms: 6.7
Qts: 0.32
Equivalent compliance volume (Vas):
163.0 dm³
5.76 ft³
Effective cone area (Sd):
850.0 cm²
131.75 in²
Maximum linear excursion (Xmax): 9.0 mm
Moving mass (Mms): 146.0 g
BL factor: 21.6 T·m
Voice coil inductance (Le): 0.8 mH
EBP (Efficiency Bandwidth Product): 102 Hz
