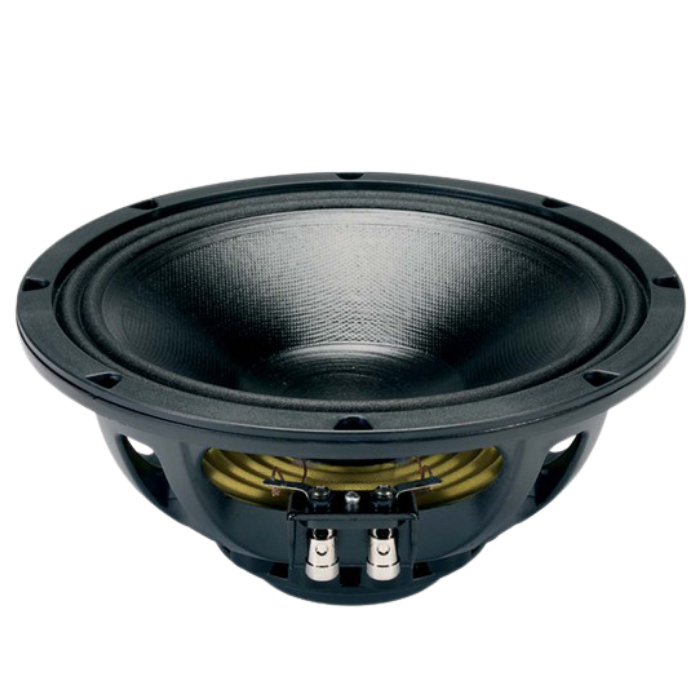

10NMB420

10NMB420

Specifications
Nominal diameter: 260 mm (10 in)
Nominal impedance: 16 Ω
Minimum impedance: 11.9 Ω
Nominal power handling: 350 W
Continuous power handling: 500 W
Sensitivity: 99.0 dB
Frequency range: 65 – 5000 Hz
Voice coil diameter: 65 mm (2.5 in)
Design (Enclosure Recommendations)
Recommended enclosure volume:
25.0 dm³
0.88 ft³
Recommended tuning frequency: 70 Hz
Parameters (Thiele & Small)
Resonance frequency (Fs): 65 Hz
DC resistance (Re): 10.5 Ω
Qes: 0.36
Qms: 4.6
Qts: 0.33
Equivalent compliance volume (Vas):
30.0 dm³
Effective cone area (Sd):
346.0 cm²
53.63 in²
Maximum linear excursion (Xmax): 4.0 mm
Moving mass (Mms): 31.5 g
BL factor: 19.5 T·m
Voice coil inductance (Le): 0.4 mH
EBP (Efficiency Bandwidth Product): 180 Hz
