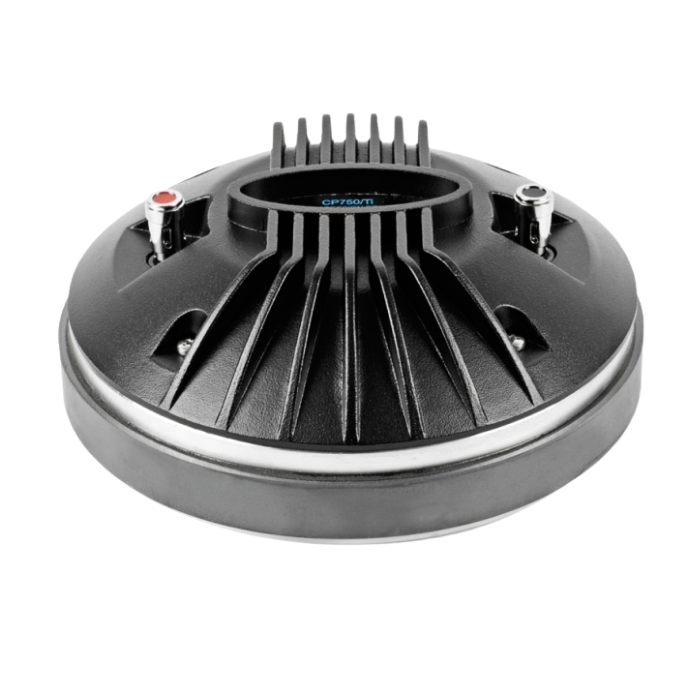

CP750Ti

• Throat Diameter: 50.8 mm / 2 in
• Nominal Impedance: 8 Ω
• Minimum Impedance: 7.7 Ω
• DC Resistance (Re): 5.5 Ω

Power Handling

• AES Power Handling: 70 W AES (above 800 Hz)
• Program Power: 140 W (above 800 Hz)

Acoustic Performance

• Sensitivity: 110 dB (1 W @ 1 m, horn‑loaded)
• Frequency Range: 600 – 20,000 Hz
• Recommended Crossover Frequency:
  • 800 Hz or higher
  • Minimum slope: 12 dB/oct

Voice Coil & Motor

• Voice Coil Diameter: 72.4 mm / 2.85 in
• Flux Density: 1.9 T
• BL Factor: 10 N/A
• Diaphragm Material: Titanium dome with polyester suspension

Construction Details

• External Diameter: 192 mm / 7.6 in
• Depth: 88 mm / 3.46 in
• Mounting:
  • 4 × M6 threaded holes at 90°
  • 101.6 mm (4 in) bolt circle
• Net Weight: 7.05 kg / 15.51 lb
• Total Weight: 7.3 kg / 16.06 lb
• Magnet Type: Ferrite
