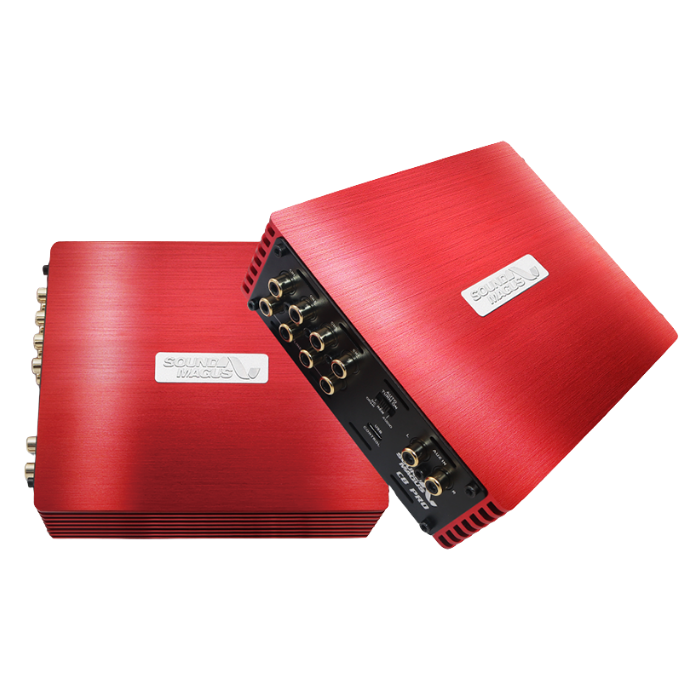

C8 Pro
- Working voltage: DC 8.2–16V
- Idling current: 0.85A
- Standby current: 10 mA
- Remote in voltage: 8.2–16V
- Remote out voltage: DC 12.8V (380 mA)
- High‑level input: Maximum 4 channels
- Bluetooth input: Stereo
- Low‑level (PRE) output: Maximum 8 channels
- Output power: 8 × 20 W RMS @ 4 ohms
- Frequency response range (@‑3 dB): 10 Hz – 22 kHz
- S/N ratio (A‑weighted, high‑level input): 98 dB
- Channel separation @ 1 kHz: 102 dB
- Input sensitivity (low level): 45 mV – 6 V
- Input impedance (high level): 10 ohms
- Maximum output level (RMS) @ 0.1% THD: 4.2 V
- Filter type: FULL / HPF / LPF / BPF
- Linkwitz slopes: 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
- Butterworth slopes: 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
- Phase adjustment: 0° / 180°
