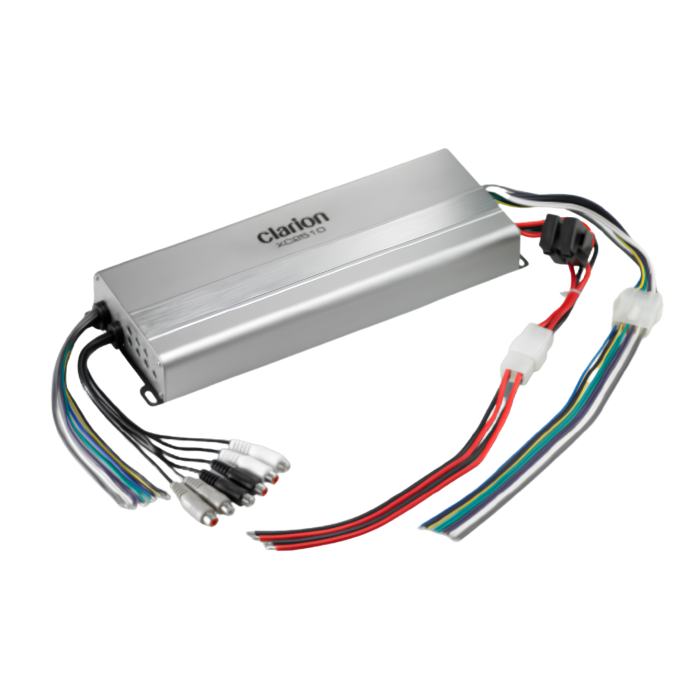

XC2310

XC2310

Clarion amplifiers offer powerful magnetic noise suppression, minimizing distortion. These amplifiers are built with high-quality terminals that ensure low electrical and contact resistance. Integrated high-pass and low-pass filters simplify subwoofer system setup. The result is high-quality sound that can be enjoyed with a variety of systems.

Description

Power at 4 ohms: 50 W × 4 + 200 W × 1
Power at 2 ohms: 75 W × 4 + 300 W × 1
Bridged power at 4 ohms: 150 W × 2
Number of channels: 5 / 4 / 3
MOSFET power supply: Yes
2‑ohm stable: Yes
Selectable bass boost: 0–12 dB at 50 Hz
Adjustable high‑pass / low‑pass crossover (12 dB/oct):
- Variable 35–250 Hz (SUB)
- 15–250 Hz (Front / Rear)
Nickel‑plated connectors: RCA / Speaker / Power
Dimensions (W × H × D): 11.02 × 1.54 × 4.33 inches
