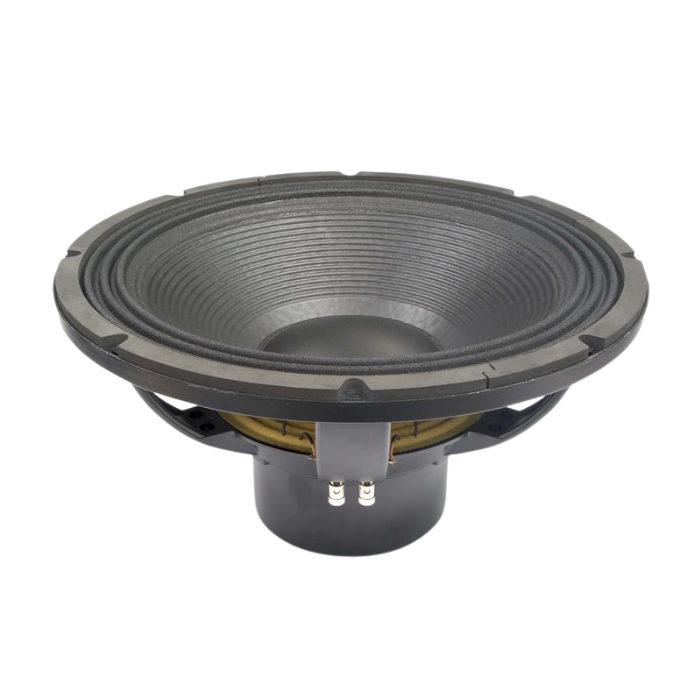

Description
Specifications
- Nominal Diameter: 462 mm (18.2 in)
- Nominal Impedance: 8 Ohm
- Minimum Impedance: 6.1 Ohm
- Nominal Power Handling: 1800 W
- Continuous Power Handling: 3600 W
- Sensitivity: 96.0 dB
- Frequency Range: 30 – 2300 Hz
- Voice Coil Diameter: 135 mm (5.3 in)
Design (Enclosure Recommendations)
- Recommended Enclosure Volume:
- 200.0 dm³
- 7.06 ft³
- Recommended Tuning Frequency: 40 Hz
Parameters (Thiele & Small)
- Resonance Frequency (Fs): 39 Hz
- DC Resistance (Re): 4.7 Ohm
- Qes: 0.3
- Qms: 5.7
- Qts: 0.28
- Equivalent Volume (Vas):
- 120.0 dm³
- 4.24 ft³
- Effective Radiating Area (Sd):
- 1130.0 cm²
- 175.15 in²
- Maximum Linear Excursion (Xmax): 14.0 mm
- Moving Mass (Mms): 275.0 g
- Force Factor (BL): 31.0 T·m
- Voice Coil Inductance (Le): 2.19 mH
- Efficiency Bandwidth Product (EBP): 130 Hz
