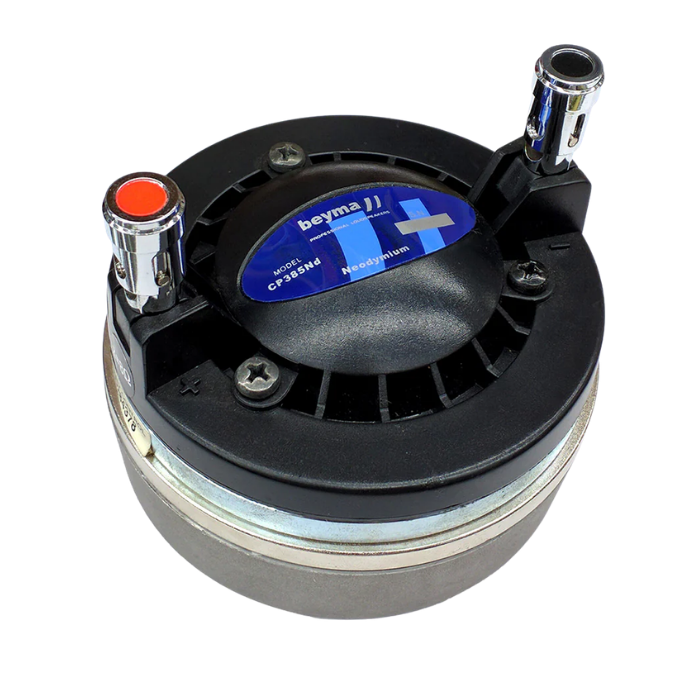

CP385Nd
- Compression motor with 1″ (25 mm.) outlet.
- Power handling 70 W. AES above 1.5 kHz.
- Potencia programa 140 w. above 1.5 kHz.
- 1.75″ (44.4 mm.) spool of flat aluminum wire.
- Lightweight neodymium magnet magnetic system.
- High sensitivity: 107 dB.
- Wide frequency response: 800-20 KHz.
- Low harmonic distortion.
- Polyester diaphragm.
- Impedancia nominal 8 ohms.
- Minimum impedance 5.2 ohms @ 4.5 kHz.
- Electrical resistance 4.7 ohms.
- Sensibilidad 107 dB 1w @ 1m coupled to TD250 horn.
- Recommended cutoff frequency 1.2 kHz or higher, 12 dB/oct.min.
- Coil diameter 44.4 mm. 1.75 in. Magnetic assembly weight 1.1 kg. 2.42 lb.
- Flux density 2.2 T. BL factor 7.5 N/A.
Description
- Compression motor with 1″ (25 mm.) outlet.
- Power handling 70 W. AES above 1.5 kHz.
- Potencia programa 140 w. above 1.5 kHz.
- 1.75″ (44.4 mm.) spool of flat aluminum wire.
- Lightweight neodymium magnet magnetic system.
- High sensitivity: 107 dB.
- Wide frequency response: 800-20 KHz.
- Low harmonic distortion.
- Polyester diaphragm.
- Impedancia nominal 8 ohms.
- Minimum impedance 5.2 ohms @ 4.5 kHz.
- Electrical resistance 4.7 ohms.
- Sensibilidad 107 dB 1w @ 1m coupled to TD250 horn.
- Recommended cutoff frequency 1.2 kHz or higher, 12 dB/oct.min.
- Coil diameter 44.4 mm. 1.75 in. Magnetic assembly weight 1.1 kg. 2.42 lb.
- Flux density 2.2 T. BL factor 7.5 N/A.
