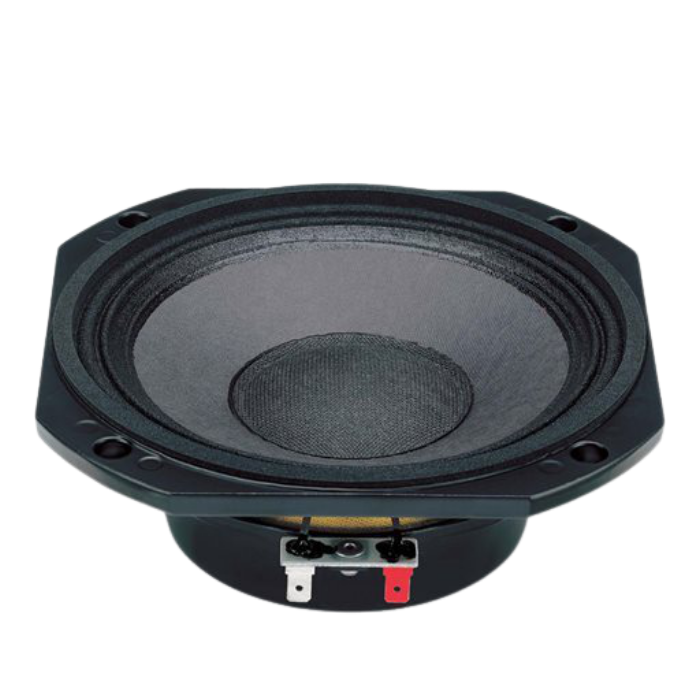

6ND410

Nominal diameter: 152 mm (6 in)
Nominal impedance: 8 Ω
Minimum impedance: 8.2 Ω
Nominal power handling: 180 W
Continuous power handling: 240 W
Sensitivity: 102.0 dB
Frequency range: 200 – 8000 Hz
Voice coil diameter: 44 mm (1.75 in)

Design (Enclosure Recommendations)

Recommended enclosure volume:
30.0 dm³
1.06 ft³

Parameters (Thiele & Small)

Resonance frequency (Fs): 120 Hz
DC resistance (Re): 5.9 Ω
Qes: 0.27
Qms: 2.2
Qts: 0.24

Equivalent compliance volume (Vas):
6.2 dm³

Effective cone area (Sd):
143.0 cm²
22.17 in²

Maximum linear excursion (Xmax): 2.0 mm
Moving mass (Mms): 8.2 g
BL factor: 11.6 T·m
Voice coil inductance (Le): 0.67 mH
EBP (Efficiency Bandwidth Product): 444 Hz
