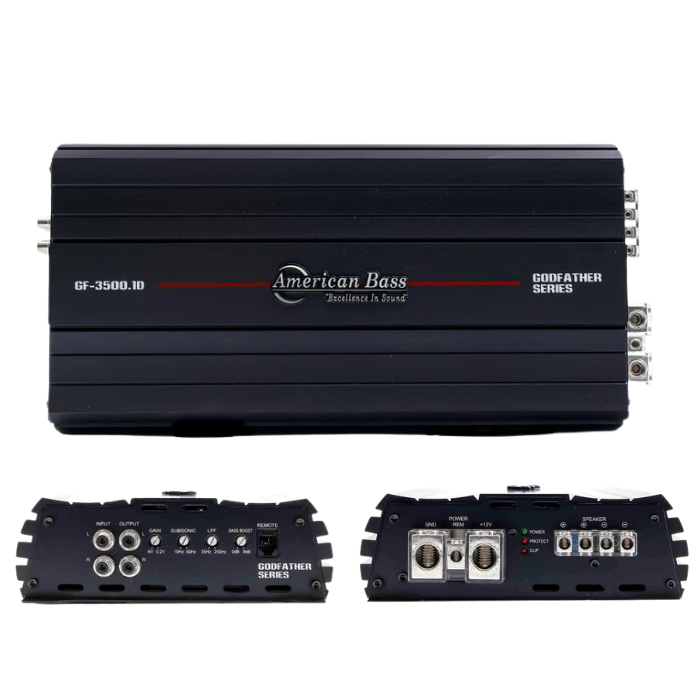

Godfather 3500.1D

Introducing the American Bass Godfather Amplifier, a compact powerhouse designed for car audio enthusiasts seeking an offer they can’t refuse. This Class D, linkable/dual mono block amplifier is packed with customizable features like variable subsonic, low pass filters, and bass boost controls, while its wired remote control and clipping indicator ensure you’re always in command. Its stability runs as deep as 1 ohm, and multi-way protection circuitry keeps your audio empire safe from DC, speaker short, thermal, and voltage threats. Rule the streets and elevate your car audio experience with this small yet mighty wiseguy, because in the world of sound, it’s not personal; it’s just business.

Category: Brand:

Description

GENERAL SPECIFICATIONS
Box Dimensions (L x W x H in) 13.78L x 7.15W x 2.33H
THD < 0.1%
Width (in) 7.15
Height (in) 2.33
Length (in) 13.78
Amplifier Type Digital Monoblock
Bass Boost 0Db -9Db
Class D
Damping Factor 150 <
Fuse Rating (Amps) 300A
Signal to Noise Ratio (dB) 85 dB
Frequency Response 10 Hz – 250 Hz
T/S PARAMETERS
RMS Power 1 Ohm 3047
RMS Power 2 Ohm 2280
RMS Power 4 Ohm 1540
PROTECTION TYPES
DC / Speaker Short / Thermal / Voltage
TECHNICAL SPECIFICATIONS
SNR (dB) 85 dB
Input Sensitivity 6V – 0.2V
Channels 1
Low Pass Filter 35Hz – 250Hz
Subsonic Filter 10Hz – 50Hz
MOSFET Type Dual MOS-FET PWM power supply
Turn On Circuit Multi-way protection circuitry
Fuse Rating 300
Power Wire Gauge 0 AWG
DIMENSIONS
Length 13.78
