EQS755V

EQS755V

Highlights: * 7-band graphic equalizer (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz) || * 6-channel/8-volt RCA outputs (front, rear, and subwoofer) || * Blue illumination ||
Highlights: * Independent master volume and subwoofer level control with attenuator control || * Front 3.5mm auxiliary input || * 2-channel RCA auxiliary input with variable gain adjustment ||
Highlights: * Selectable 12 dB low-pass filter (60 Hz or 90 Hz) || * Fade control || * Ground loop isolation circuitry || * RCA and high-level speaker inputs ||
* Dimensions: 7 inches (width) x 4-1/4 inches (length) x 1″ (H) ||

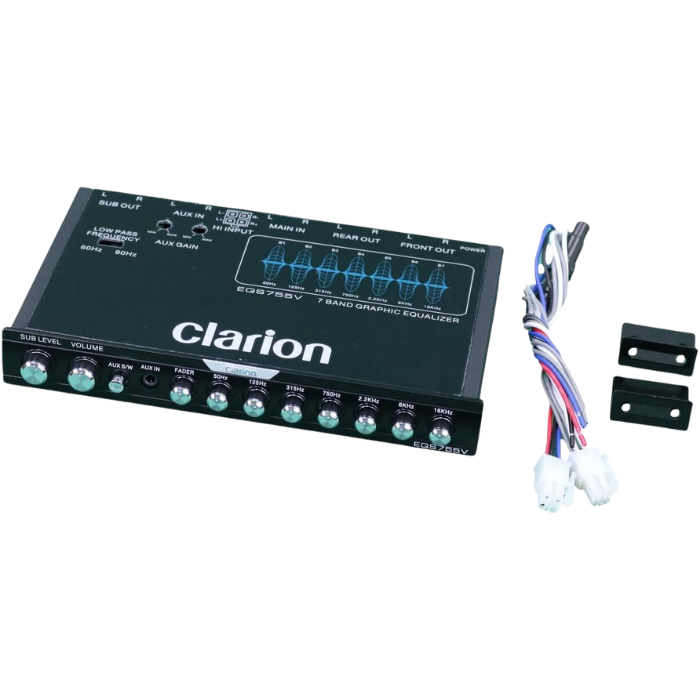

The EQS755 is a 1/2 DIN chassis graphic equalizer with a built-in low-pass filter. Equipped with a full-featured 7-band graphic equalizer, it gives you superior control over the audio spectrum with frequency adjustments ranging from 50 Hz to 16 kHz across seven bands. This empowers you to get the most out of your sound system and allows you to tailor the sound output to your musical preferences.

Description

Type: 1/2 DIN car audio 7‑band graphic equalizer / crossover
Equalization:
- 7‑band graphic EQ
- Bands: 50 Hz, 125 Hz, 315 Hz, 750 Hz, 2.2 kHz, 6 kHz, 16 kHz
Inputs:
- Front auxiliary input (0.138 in / 3.5 mm)
- Rear RCA auxiliary input (2‑channel) with variable gain adjustment
- High‑level speaker inputs
Outputs:
- 6‑channel RCA outputs / 8 volts (front, rear, and subwoofer)
Controls:
- Independent master volume control
- Independent subwoofer level control with attenuation
- Fader control
Filters:
- Selectable 12 dB low‑pass filter (LPF) at 60 Hz or 90 Hz
Additional features:
- Blue illumination
- Ground loop isolation circuit
- Compatibility with RCA and high‑level speaker inputs
Dimensions:
- 7 inches (W) × 4‑1/4 inches (L) × 1 inch (H)
Product description:
- The EQS755 is a 1/2 DIN graphic equalizer with a built‑in low‑pass filter.
- It features a full‑function 7‑band graphic EQ, providing precise control over the audio spectrum from 50 Hz to 16 kHz.
- Designed to maximize system performance and allow detailed sound shaping to match personal musical preferences.
