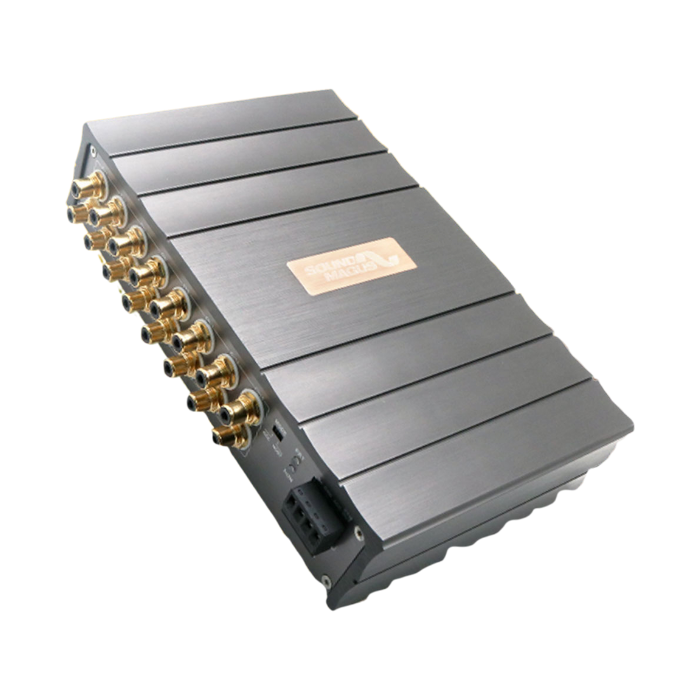

EP16S

EP16S

ADI automotive grade SigmaDSP Dual digital audio signal processor chip
ADC chip – Analog-to-digital converter integrated circuit
AKM audiophile-grade audio dedicated chip
Japanese Rubycon audio dedicated filter capacitor
German WIMA audiophile-grade capacitor
High-Performance audio operational amplifier
Ultra high signal-to-noise ratio optimization
Intelligent high-level input impedance detection technology
Built in Bluetooth 5.1 module
Supports optional external HD Bluetooth adapter & optional multi function wired remote control
Supports Optical/Coaxial digital audio input
High quality gold-plated RCA terminals
Main/auxiliary sound source intelligent mixing function
Simulate spatial panoramic sound
Audio source sound effects linkage
Dynamic loudness compensation
Multiple high level signal inputs, supporting arbitrary mixing between multiple channels
Software with built-in RTA Real Time Analyzer
Supports iOS/Android phone app tuning. Supports encrypting DSP settings to prevent unauthorized modifications (external HD Bluetooth adapter required)

Description

SPECS:

Power supply

Input

Analog input: 16 Channel High Level / 10Vrms or 18Vrms | 2 Channel Low Level (AUX) / 2.0Vrms
Digital audio input: 1 Optical ; 1 Coaxial
Input Impedance: 20K Ohm (Low Level) / 4.7 Ohm (High-Level)
Bluetooth: Built-in Bluetooth 5.1, Supports SBC / AAC protocols | Optional external Bluetooth adaptor, supports AAC, APTX-L, APTX-LL, APT-HD, MP3, SBC and other protocols; supports OTG audio transmission (BTA-02 only)

Output

Output Channel: 16 Channel Low Level
Low level output channel: Output Level 5Vrms (14.4V, 1KHz, 1%THD)
Frequency Response range: 20Hz ~ 40KHz (-3dB)
THD (1KHz, 1Vrms output): 0.01%
S/N Ratio (1KHz A-wt.THD=1%): >95dB
Channel Separation @1KHz: >105dB
Output signal Crossover: Independent HPF, LPF filter for each channel | Filter type: Link-Ril, Bessel, Butter-W | Filter frequency: 20Hz~40KHz (1Hz steps) | Filter slope: 6dB/Oct~48dB/Oct
Output Signal Equalizer: 31 independent equalizers per channel. Type: Parametric / Graphic Equalizer | Frequency: 20Hz~40KHz (1Hz steps) | Q Value: 0.404~28.852 | Gain: -12.0dB~+12.0dB (0.1dB steps)
Output Phase: Normal phase or reverse phase (0°360°)
Output Delay: 0.00020.000ms; 0692cm; 0272.8 inch
Output volume: Each channel independent adjustment: -60dB/Oct~0dB/Oct (0.1dB steps) | Total volume adjustment: -60dB/Oct6dB/Oct (0.1dB steps)
Shutdown delay: 0255S

Control

DSP Tuning: PC software (Installation free) / Smartphone app tuning (External Bluetooth adapter required)
Remote control: Wired controller / Smartphone app control (External Bluetooth adapter required)

Dimension
